Chevrolet Equinox battery size

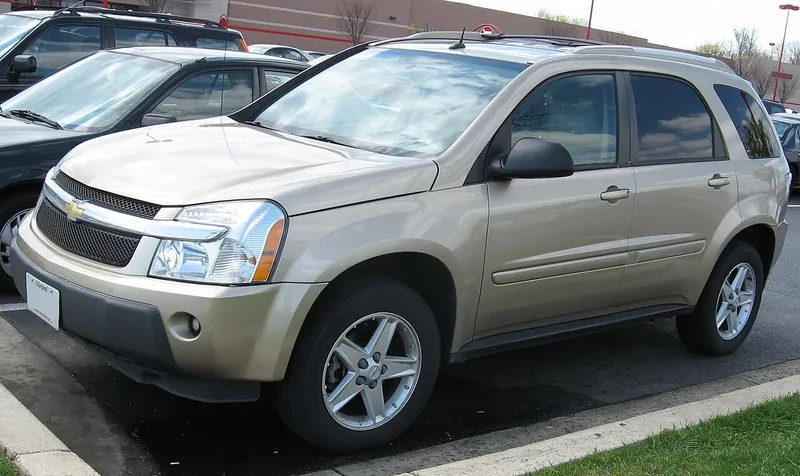

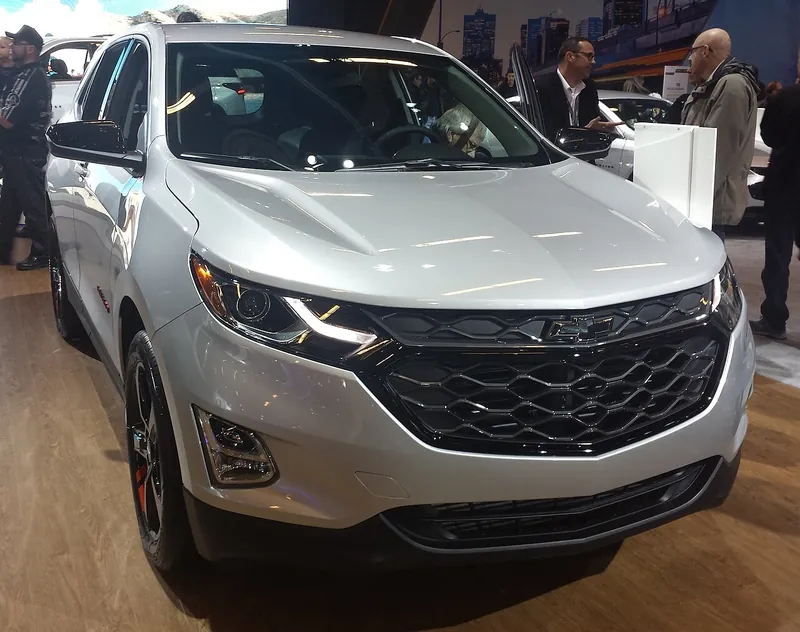

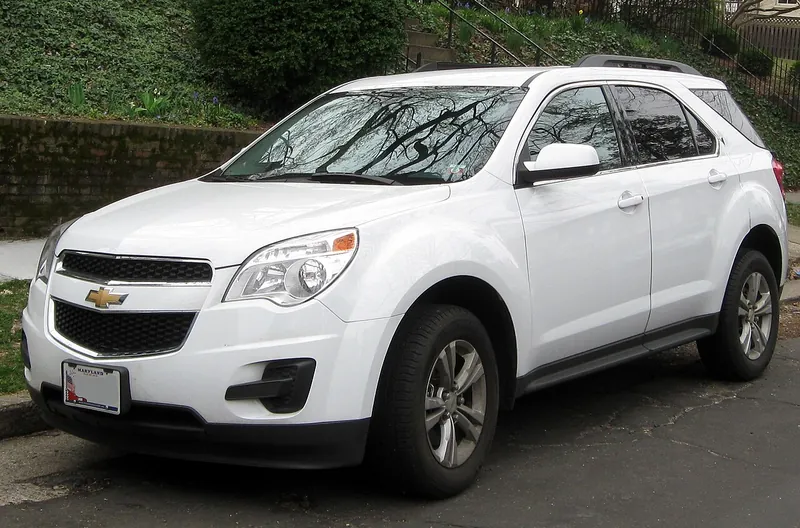

No photo for this year yet: we only show a photo of the matching generation.
All verified years: Group 75 (2005–2006) · Group H5 (47) (2007–2017) · Group H6 (48) (2010–2020, 2023)
| Years | Engine / version | Group size | Min. CCA | Type |
|---|---|---|---|---|
| 2023 | 1.5L turbo | Group H6 (48) | 730 | AGM required |
| 2018–2020 | 1.5L and 2.0L turbo | Group H6 (48) | 730 | AGM required |
| 2018–2019 | 1.6L diesel | Group H6 (48) | 730 | AGM required |
| 2013–2017 | 3.6L V6 | Group H6 (48) | 660 | – |
| 2010–2017 | 2.4L 4-cyl | Group H5 (47) | 525 | – |
| 2012 | 3.0L V6 | Group H6 (48) | 660 | – |
| 2010–2011 | 3.0L V6 | Group H6 (48) | 615 | – |
| 2008–2009 | 3.6L V6 | Group H5 (47) | 650 | – |
| 2007–2009 | 3.4L V6 | Group H5 (47) | 650 | – |
| 2005–2006 | 3.4L V6 | Group 75 | 600 | – |
– = not specified in our sources (hover for details): match the CCA or type on the battery in your car now. Last verified 2026-10-19; sources are listed below.
Check your car first
- 2023 1.5L turbo: GM's own 2023 chart confirms AGM and lists the factory battery at 700 CCA; Interstate lists 730.
- Not shown yet: 2021-2022 (one source only), 2024+ (GM lists AGM and CCA but not group size; 2025 is a new generation), Equinox EV.
Confirm in your owner's manual. Battery fitment can change with engine, trim, option packages, market (US vs. Canada) and mid-year production changes. Before you buy, check the label on the battery that's in your car now and your owner's manual.
Sources for each row
| Years / engine | Checked against |
|---|---|
| 2023 1.5L turbo | Interstate Batteries; GM TechLink (General Motors) |
| 2018–2020 1.5L and 2.0L turbo | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2018–2019 1.6L diesel | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2013–2017 3.6L V6 | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2010–2017 2.4L 4-cyl | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2012 3.0L V6 | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2010–2011 3.0L V6 | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2008–2009 3.6L V6 | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2007–2009 3.4L V6 | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
| 2005–2006 3.4L V6 | Mopar (Stellantis), data from Battery Council International; Interstate Batteries |
Full source list: 2021 Mopar Batteries Application Guide (BCI replacement data) (checked 2026-10-21) · Interstate Batteries Application Guide 2023 (2000-2023 model years) (checked 2026-10-21) · GM Original Equipment Battery Ratings, 2023 model year (checked 2026-10-19). We store facts and links only; we don't copy manuals or guides. How we check specs.
How to replace the battery
Tools: 10 mm wrench or socket (some hold-downs need 12 or 13 mm or an extension), gloves, eye protection, terminal brush. Time: about 15–30 minutes for an under-hood battery; longer if it's in the trunk or under a seat.
- Park, turn everything off and take the key or fob out of the car.
- Disconnect the negative (–) cable first, then the positive (+).
- Remove the hold-down and lift the battery out. Batteries are heavy (often 35–60 lb); lift with your legs.
- Clean the tray and cable ends. Set in the new battery with the posts on the same sides as the old one.
- Fit the hold-down, connect positive (+) first, then negative (–). Tighten until the clamps don't twist by hand.
- If your car has a vent tube on the battery (common for trunk or cabin batteries), reconnect it.
- Start the car. Some newer vehicles with a battery monitor need a reset or registration after a new battery. Your owner's manual explains it; a parts store or dealer can do it if needed.
Most parts stores take old batteries for recycling and usually refund a core charge.
Recalls for the Chevrolet Equinox (2005–2023)
NHTSA lists 25 recall campaigns across the years shown on this page (all components, not just batteries). Check your own car by VIN at nhtsa.gov/recalls.
| Campaign | Reported | Component | Model years |
|---|---|---|---|
| 23V339000 | 2023-05-11 | CHILD SEAT:VEHICLE LATCH ANCHOR | 2020–2023 |
| 22V929000 | 2022-12-15 | AIR BAGS:SENSOR:OCCUPANT CLASSIFICATION:FRONT PASSENGER | 2023 |
| 22V724000 | 2022-09-29 | SEATS | 2023 |
| 22V165000 | 2022-03-17 | VISIBILITY:WINDSHIELD WIPER/WASHER:MOTOR | 2014–2015 |
| 20V668000 | 2020-10-29 | POWER TRAIN:AUTOMATIC TRANSMISSION | 2018–2020 |
| 19V704000 | 2019-10-03 | SERVICE BRAKES, HYDRAULIC:FOUNDATION COMPONENTS:DISC:CALIPER | 2020 |
Most recent 6 shown. Source: NHTSA Recalls API (recallsByVehicle), snapshot 2026-10-21.
FAQ
What size battery does a Chevrolet Equinox take?
Verified sizes by year: Group 75 (2005–2006), Group H5 (47) (2007–2017), Group H6 (48) (2010–2020, 2023). The exact size depends on engine and options, so use the table above for your year.
Does the Chevrolet Equinox need an AGM battery?
Our sources list an AGM battery for: 2023 1.5L turbo; 2018–2020 1.5L and 2.0L turbo; 2018–2019 1.6L diesel. If your car came with an AGM or EFB battery, replace it with the same type.
How many cold cranking amps (CCA) does a Chevrolet Equinox need?
Minimum ratings in our sources range from 525 to 730 CCA depending on year and engine. Buying a battery with the same or higher CCA in the correct group size is fine.
Why are some Equinox years missing?
We only show years we could check against a manufacturer-grade source. Not shown yet: 2021-2022 (one source only), 2024+ (GM lists AGM and CCA but not group size; 2025 is a new generation), Equinox EV.
